Inverter help needed

Merl

Forum Member
Forget about 12v to 24 volt charger, way too complicated and if you can find one it'll cost you, stick with using the inverter and a mains charger.
Can you find the Ah capacity of the scooter battery? I suggest choosing a charger of around 30% and not exceeding 50% of the Ah rate so if your battery is 10Ah or over then the 4A charger will suit.
Your inverter will easily handle an 8A charger so you have the option to go larger (and hence charge quicker) if your batter is 20Ah or greater. If the battery is 15Ah then go for a 6A. Sized like this you'll go from flat to full in around 3 hours.
Merl


Merl

Forum Member
Pudsey Bear said:
Liz isn't very steady on her feet, she's already pulled the inverter out of the ciggy socket twice so I need to get rid of that first, for me to use the leisure battery will get expensive fast as i would need someone who knows what they're doing as I'm not fit to do it (clue in needing a mobility scooter), starter battery is under floor in front of passenger seat in cab, scooter is inside the hab door behind the passenger seat so all close together, as you say I could carry on as is but I have ADD and I'm also a neat freak in the van, hence my wanting/needing a tidy solution.
I think i could cope with working on the starter battery as not too much bending involved, ditto working through the hab door to fit stuff. Just need to wait till I get home now.
Click to expand...
Remember you may not need to go all the way back to your Hab battery to get it's power. Depending on the cable sizes you used during fitout you can possibly get it at your split charger, power/fuse panel, or solar charger.
Merl

Pudsey Bear

Pudsey Bear

Forum Member
If I had a brain I'd be dangerous, I took these the other day and forgot to post them.

I can do it on facts but not on here, so I'll do that and link to them.

Pudsey Bear

Pudsey Bear

Forum Member
Merl said:
Remember you may not need to go all the way back to your Hab battery to get it's power. Depending on the cable sizes you used during fitout you can possibly get it at your split charger, power/fuse panel, or solar charger.
Merl
Click to expand...
I can't do that I'm afraid.

Not much I can do til I get home anyway so I'll see what the starter battery is and go from there.


Sprinter 1 cup

Forum Member
A cheap lipo Solar controller will charge this battery as that us what it is a battery !. All day every day at home or away.
Buy a 24v solar controller and fit it between your vans panels and your fitted solar controller. So befor your system Run wire to carts charging port it maybe input and outpt socket ?. Via a socket neara the cart like at floor level

If it was me I would fit new connector to cart like a anderson 30amp red for input and output and add battery on cart to my vans system.. to use my truck kettle 10amps . 24volts are quicker bolling. Lol.

But I would cut plug wire too to use the plug .
Im poor in money but stretch it feverish. ?

Pudsey Bear

Pudsey Bear

Forum Member
Sprinter 1 cup said:
A cheap lipo Solar controller will charge this battery as that us what it is a battery !. All day every day at home or away.
Buy a 24v solar controller and fit it between your vans panels and your fitted solar controller. So befor your system Run wire to carts charging port it maybe input and outpt socket ?. Via a socket neara the cart like at floor level

If it was me I would fit new connector to cart like a anderson 30amp red for input and output and add battery on cart to my vans system.. to use my truck kettle 10amps . 24volts are quicker bolling. Lol.

But I would cut plug wire too to use the plug .
Im poor in money but stretch it feverish. ?
Click to expand...
Totally no idea what that means I'm afraid.

Existing battery is a FLEXBL-UK 25.9v 10ah it also says 259WH, the charger should be a DC 29.4V/2A Automatic protection charger.


Going to change my username to "Totallyclueless"


Merl

Forum Member
Sprinter 1 cup said:
A cheap lipo Solar controller will charge this battery as that us what it is a battery !. All day every day at home or away.
Buy a 24v solar controller and fit it between your vans panels and your fitted solar controller. So befor your system Run wire to carts charging port it maybe input and outpt socket ?. Via a socket neara the cart like at floor level

If it was me I would fit new connector to cart like a anderson 30amp red for input and output and add battery on cart to my vans system.. to use my truck kettle 10amps . 24volts are quicker bolling. Lol.

But I would cut plug wire too to use the plug .
Im poor in money but stretch it feverish. ?
Click to expand...
A 12v panel charging 24v battery via a cheapo charge controller....really? Surely a charger employing buck voltage boost would be needed and I expect they come cheap but I could be wrong, (as SWIMBO will confirm I'm sure):unsure:
Merl


Sprinter 1 cup

Forum Member
Ive not heard of a 12v solar pannle ?, mate only solar controller's. !
So what the smallest panel 2 fit on van for 24 volt hab battery ?@ 5amps hopefully 9amps in test condishions. .?


Merl

Forum Member
Sprinter 1 cup said:
Ive not heard of a 12v solar pannle ?, mate only solar controller's. !
So what the smallest panel 2 fit on van for 24 volt hab battery ?@ 5amps hopefully 9amps in test condishions. .?
Click to expand...
When I say 12v solar panels I'm referring to solar panels that would typically be used on a 12v solar system such as puds'

uk.renogy.com

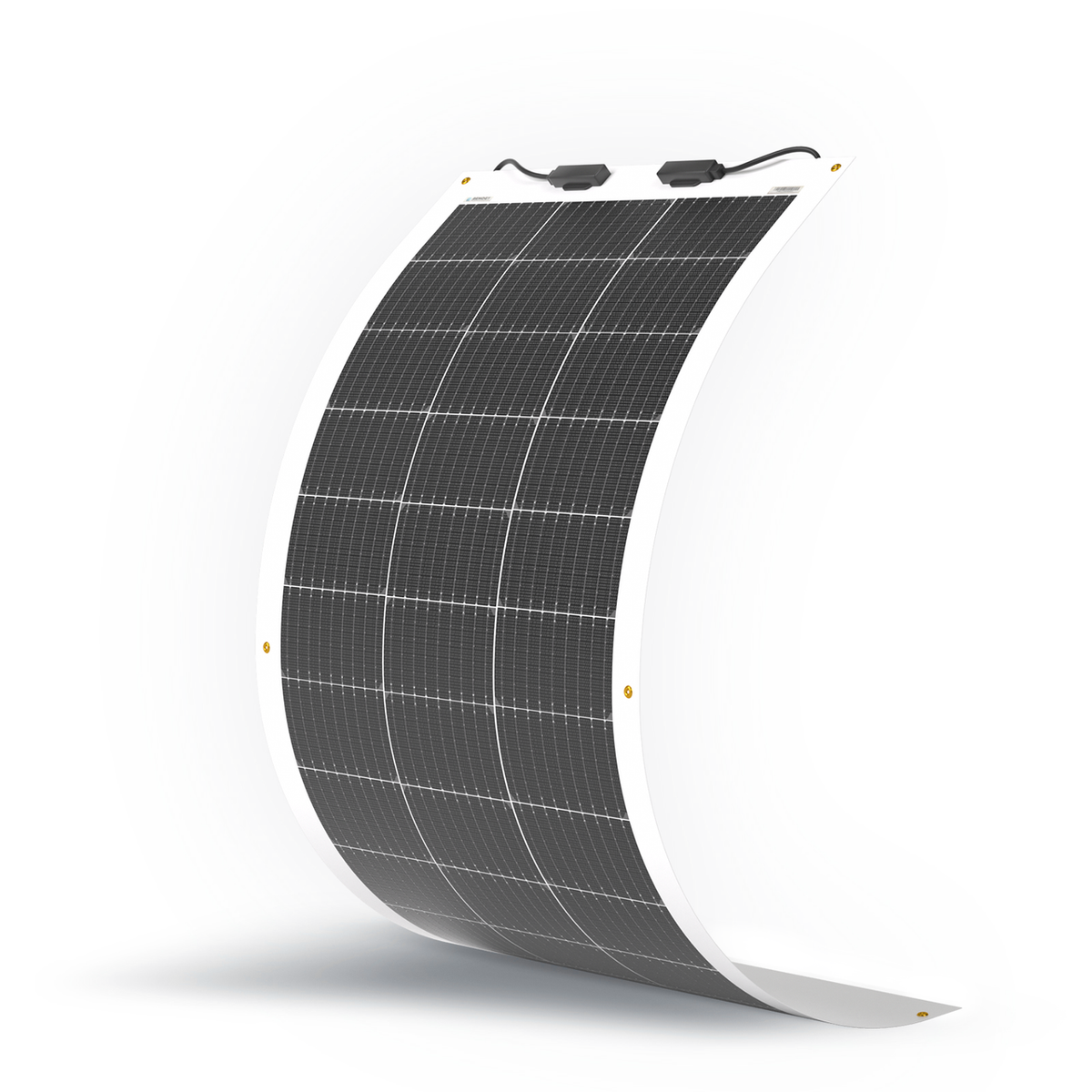

100 Watt 12 Volt Flexible Monocrystalline Solar Panel

The 100W Renogy Flexible Solar Panel is a culmination of cutting-edge technology and high-efficiency cells to achieve up to an incredible 248-degree arc of flexibility.
uk.renogy.com uk.renogy.com

These 12v panels typically generate 18-22V max and therefore I can't see how they'd produce enough voltage to put any significant power into a 24V solar charger / 24V battery mate.
Ideally he'd need what's referred to as a 24V panel or 2 X 12V panels wired in series and of course the 24V charge controller you mentioned. (I suspect this is what you've got on your truck)
I'd guess a 12v MPPT controller may work in a fashion from his existing 12v panel/panels but a genuine MPPT charge controller isn't cheap and Puds want's to keep costs down to a minimum and may not even work at all.

Merl


Merl

Forum Member
I've no idea mate, all I know is a lot of cheap solar controlers are advertised as MPPT but in reality they aren't.
Open it up and if it's got a large coil inside then it's legit.
Merl


wildebus

Forum Member
Merl said:
I've no idea mate, all I know is a lot of cheap solar controlers are advertised as MPPT but in reality they aren't.
Open it up and if it's got a large coil inside then it's legit.
Merl
Click to expand...
with some, open it up and you void the warranty and also muck up the cooling as you would be unable to pack in all the sand again.


Sprinter 1 cup

Forum Member
150 w panel and a mppt chargers alread in van just goin for the long game to charge cart when stationary.
Also at a quicker speed so more avaliable useage.. for just 4 iteams 3 being connections
New parts
Plug to cart
30 amp Anderson connections male & femal x2
10 to 30 amp thingy with 24v output. Done . the wire is in house.
Vuctron 12 v 24v b2b at only £ 200.00 sounds best . But second hand

www.ebay.co.uk

Victron SCC010010050R Multipurpose Solar Charger for sale online | eBay

Find many great new & used options and get the best deals for Victron SCC010010050R Multipurpose Solar Charger at the best online prices at eBay! Free delivery for many products!
www.ebay.co.uk

low power solar controoers are cheap and everys one now getting bigger one. So more on the market place sites
Only because they've sold as heaven, only tobe sold a stairway to heaven.

Go big or go home is the best for me with electric

And

Only vw owners buy fexi panels. Lol
