F$%$K What an Idiot I AM - Just Blew the Inverter !!!

RAW

Full Member
Was doing some faffing and trying to get a bit more data on this post connected up the Edecoa and wired it wrong way round. BANG
FEEL SO F'ING STUPID !!!

Anyone know if it is serviceable ?


RAW

Full Member
Inside The Edecoa Inverter 3000W Peak - 1500W (Supposedly)


These are all blown (8 in total)


IN MY SPARE FUSES I ONLY HAVE BIGGER ONES !! (TYPICAL)

On EBAY I GO....
To be updated


Attachments

RAW

Full Member
have you checked the packaging? sometimes you get a replacement set of fuses included.
Box long gone, hopefully fuses have protected the Coils and PCB Components, didn't see any capacitors over blown, weird white semi liquid stuff stuck to the triacs (that's what I think they are called) guess it is some sort of thermal paste and cables off of them are for temperature monitoring


wildebus

Full Member
Box long gone, hopefully fuses have protected the Coils and PCB Components, didn't see any capacitors over blown, weird white semi liquid stuff stuck to the triacs (that's what I think they are called) guess it is some sort of thermal paste and cables off of them are for temperature monitoring

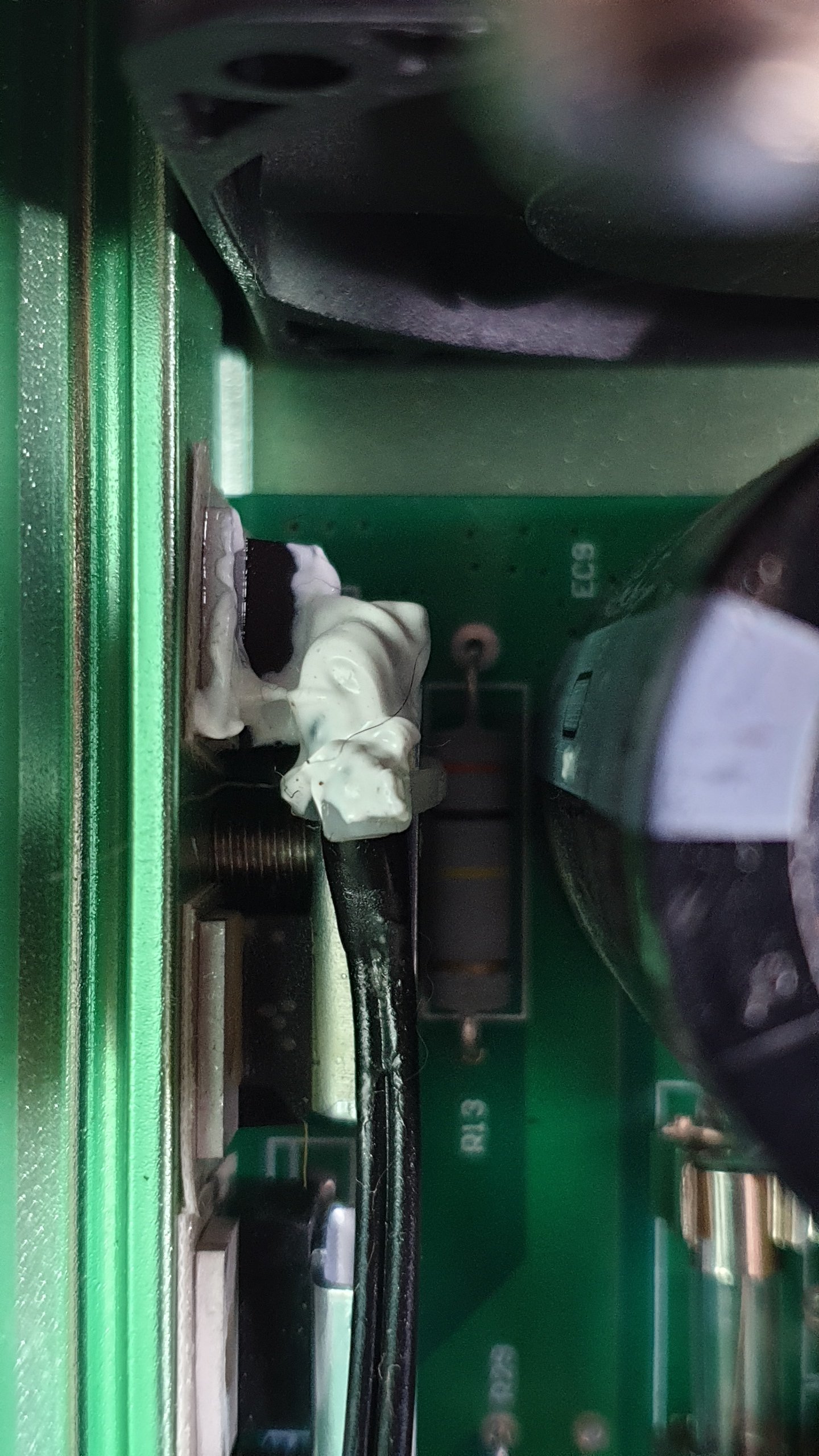

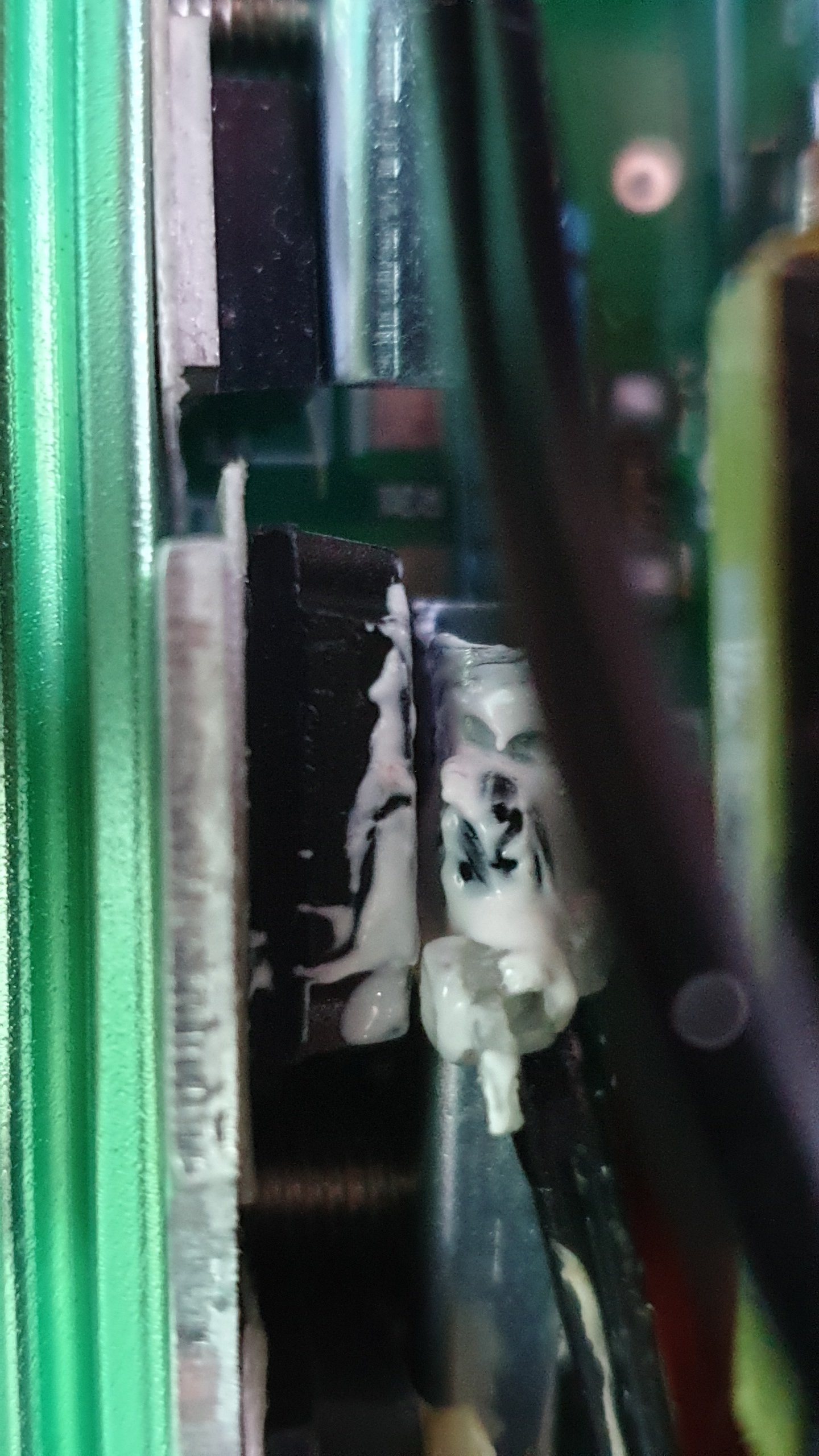

View attachment 2129View attachment 2130
I have a habit of keeping the box for everything I buy! Not a recommendation, just a habit (can be handy, mind. I repurposed a box which contained a 'modelling workstation' just a few days ago - I bought the actual workstation in 2011).
Thermal Paste I would agree.

Hopefully the fuses will fix it but they are for overload protection not reverse polarity, so don't be further disappointed if still not working. Does the inverter pass the sniff test?


wildebus

Full Member
Good news about no pong.

We used to have some fun back in the 80's with a computer monitor that used to have a self-destructing power supply. A capacitor was too close to a heat sink and used to explode and smoke would pour out the back so the operator would rip the plug out the socket in panic.
The fun bit is that it the capacitor didn't actually seem to have any function and the monitor would work fine afterwards after the cap blew up. So the engineers would go on site and depending on the customer (usually how good looking they were - before #metoo of course!), we would either just the screen back on and ask them what they were talking about, or spend some time fixing it while chatting to them, or if in a nice location, arrange for a revisit with a new PSU (usually as an overtime call ;) ). Oh, those were the days when field engineers actually used to repair stuff (occasionally getting the wiring diagrams, 'scope and soldering iron out - used to carry complete circuit boards but in their individual TTL component form :) )

I would think a visit would be fine. I do plan to go to the overland/international campervan show, whenever that is, though.

  • Funny
Reactions: RAW

trevskoda

Full Member
Cannot see why anyone wants a inverter except for a 230v heating coil or a com fridge,oh heavens maybe i do want one. :)


RAW

Full Member
I would think a visit would be fine. I do plan to go to the overland/international campervan show, whenever that is, though.
Let's communicate privately about a Visit either by email (you have my email address) or via messaging here.
I guess you mean this show in Stratford-Upon_avon
https://adventure-overland-show.com/spring/

Kind of tempted to go myself and as it's a weekend then that may be doable, see you some time in April hopefully :)


RAW

Full Member
Cannot see why anyone wants a inverter
  • Can run a small induction Hob
  • Power Tools
  • Laptops that have non standard Power Supplies, Chromebooks can be charged with any supply via USB-C but other laptops have dedicated power supply blocks
  • The Inverter I have also has USB Outlets at decent 2.1 AMP so that's good and they work regardless of inverter being on or off
There's a few things in that list....


Nabsim

Full Member
  • Can run a small induction Hob
  • Power Tools
  • Laptops that have non standard Power Supplies, Chromebooks can be charged with any supply via USB-C but other laptops have dedicated power supply blocks
  • The Inverter I have also has USB Outlets at decent 2.1 AMP so that's good and they work regardless of inverter being on or off
There's a few things in that list....
Why did you have to mention an operating system? 😂😂😂


RAW

Full Member
Hopefully the fuses will fix it but they are for overload protection not reverse polarity, so don't be further disappointed if still not working.
Too much for me, fuses didn't do job, sparked again like short circuit and now on EBAY


smdts

Full Member
probably only around £10 of faulty fets and diodes, do you know how to use a meter on diode test mode?


RAW

Full Member
do you know how to use a meter on diode test mode?
Yes but probably not in my scope to fix as not got all the de-soldering tools and other tools necessary for small board electronics.
If you want it and think you can fix it then can give you a good price ?


smdts

Full Member
nope, time is at a premium at the moment, got a pile of sonos amps sat on the shelf awaiting repair but cant find a minute to get near them, if i'm not working or doing something with the kids the remainder of my free time is spent building my camper. Plus my 3000w steady 6000w peak inverter is too fairy to run my 3000w water heater, so I doubt this would. I am sending it back to order a 6000w continuous one.

  • Like
Reactions: RAW
